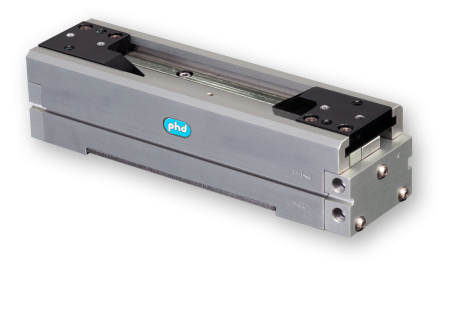

phd GRH 12-5-16x100 (phd GRH 12-5-16x100)

GRH passar applikationer som behöver lång slaglängd och modest gripkraft.

Slaglängd= 100 mm
Gripkraft= 214 N

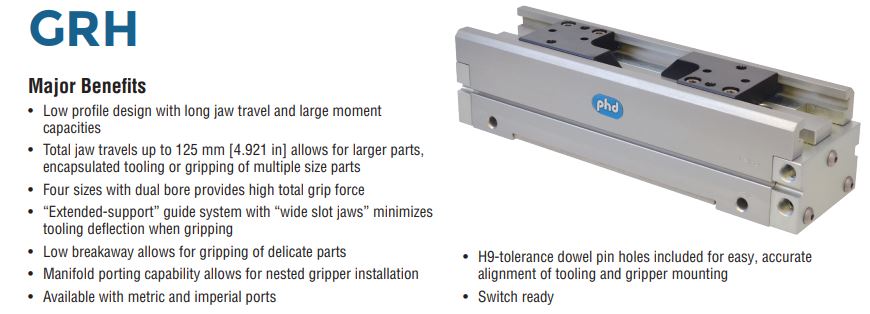

Major Benefits

• Low profile design with long jaw travel and large moment
capacities
• Total jaw travels up to 125 mm [4.921 in] allows for larger parts,
encapsulated tooling or gripping of multiple size parts
• Four sizes with dual bore provides high total grip force

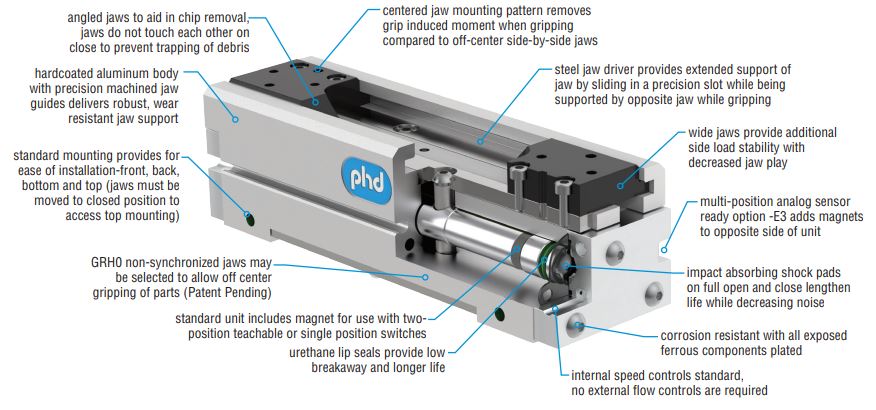

• “Extended-support” guide system with “wide slot jaws” minimizes
tooling deflection when gripping
• Low breakaway allows for gripping of delicate parts
• Manifold porting capability allows for nested gripper installation
• Available with metric and imperial ports
